  1. #1
    Life Is Good! ChinaV's Avatar
    Join Date
    May 2008
    Location
    Guangdong, China
    Posts
    1,488
    Decided to take the plunge and do the valve adjustment this weekend. I took some notes and pictures so people can see it's really not that difficult. I'm fairly sure all the Chinese motorcycles use a rocker arm design. The benefits of this are lower manufacturing costs and easy adjustments. The downside being more frequent adjustments and accelerated wear on the guides due to lateral friction.



    The shim under bucket design that is found in most modern motorcycles requires less maintenance, but can be a real PITA because you need a set of shims and generally must remove the camshaft to perform the adjustments.



    I worked in a Suzuki dealership in the late 80's and early 90's. At that time, almost all Suzuki models were using the rocker arm adjuster. We performed a first service at 600 miles and the valve adjustment was part of that service. I would say about half the bikes serviced were out of spec. Suzuki usually recommended 4000-8000 miles between valve adjustments. After the initial adjustment, most of the bikes we serviced stayed within spec and rarely required further tweeking until they reached high mileage.

    I think it's safe to say that most people don't touch their valves for two reasons. #1 Shops charge an arm and a leg for it because it's very time consuming. #2 Noisy valves usually won't stop the bike from running, and most people ignore maintenance until they are stranded on the road.

    With that said, I think it's best if you perform an initial valve adjustment at 1000 kilometers and then check them every 5000 kilometers.

    So let's get started..... I always like to start with a clean bike before tearing her down and getting inside. You are going to have a few areas of your engine exposed during the process, any loose crud hanging around your engine could fall inside and really ruin your day. Also not a bad idea to use a work stand for this operation.

    Ain't She Purdy!



    I would recommend pulling the seat, side panels and tank off. It's not absolutely necessary, but it makes the process a lot easier. Now that she's naked, remove the spark plug and the four items marked in yellow in the following picture.
    #1 Front Valve Cover 17mm spanner
    #2 Rear Valve Cover 17mm spanner
    #3 Timing Mark Cover 17mm spanner
    #4 Small Engine Cap 10mm Allen Wrench

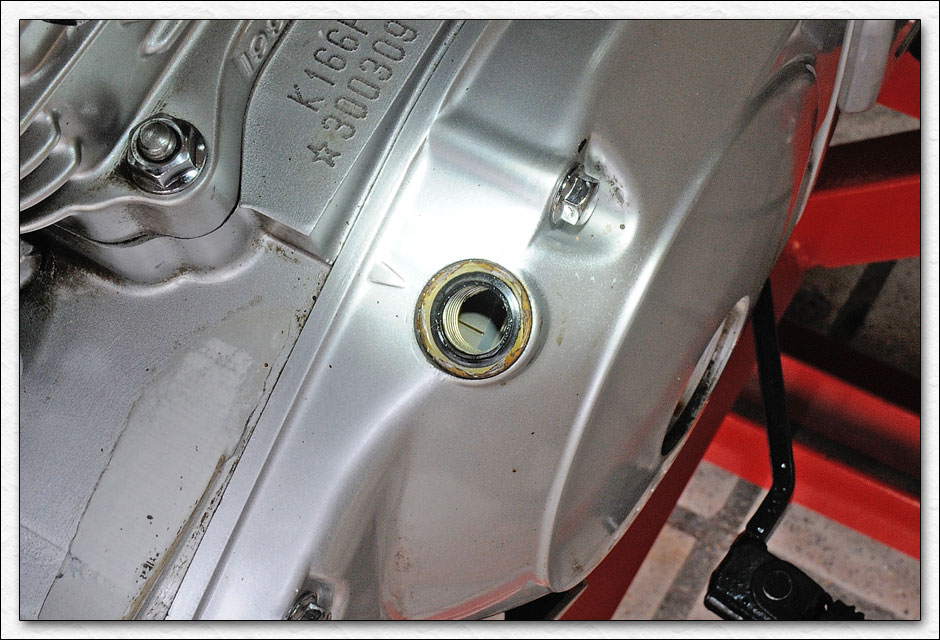

    Put your 17mm socket inside the hole, where the 10mm allan cap was, and rotate the engine around (counterclockwise) until you see a mark on the flywheel indicating Top Dead Center. Verify you are at Top Dead Center (TDC) by checking the position of the piston through the spark plug hole. If you got it right, you can grab one of the rockers and wiggle it a bit. Remember, this is a four stroke engine, the piston will be at TDC twice during the four strokes. This is what you should see through the inspection hole if you got it right.



    Now, let's have a look at one of the valves. This happens to be the intake valve, but it is identical to the exhaust valve.



    Here's some colour coding and explanations for you first timers.
    The first thing you need to understand is what we are adjusting here. At the bottom, you will see a Green part and a Red part. We are trying to measure and set the gap (space) between these two items. The Orange screw at the top is what you will turn to make the adjustment. The Blue nut keeps everything tight after you have made the adjustment. Pretty simple



    You will need a set of feeler gauges to measure the gap. First thing you want to do is check the current gap, maybe your valves don't need adjusting. Through CrazyCarl, we have learned that the correct specification is .06mm to .08mm for both the exhaust and intake ports. Take a .09mm gauge and slip it in. If it goes in, you're valves are too loose. Take a .06mm gauge and slip it in. If it doesn't go in, your valves are too tight.

    If you need to adjust them, loosen the nut and back the adjuster screw out. Insert a .07mm gauge and carefully tighten the adjuster until it lightly pinches the gauge. You should be able to pull the gauge out. Now tighten the lock nut down without rotating the adjuster screw (not easy unless you have 3 hands). If you did it correctly, the .06mm will easly slip in, the 07mm will slip in with a little wiggling and the .08mm will not go. If you can't get a .06mm in there, they are too tight. If you can get a .09mm in, they are too loose.



    Now that you have both the intake and the exhaust valves adjusted, step back and drink a beer It's a good idea to verify your work, so rotate the engine a few times and then check them again. Be patient, you probably won't get it right the first time, I didn't If everything appears to be in good working order, put the bike back together and fire it up. With any luck she will be smooth as silk. If you hear some nasty clacking sounds, immediately shut the bike off and check the valves again.

    I took a quick run around the block and the bike definately responds better and the engine sounde nice and smooth. I will need to take her out for a good thrashing and see if this helps with the stalling issue I have been encountering all along.

    Cheers!
    ChinaV
    Reply With Quote


  2. #2
    C-Moto Regular volksjagger's Avatar
    Join Date
    Jun 2008
    Posts
    63
    fantastic. thank you for this. i appreciate the effort and attention to detail.

    i beat the hell out of my bike and just had the first valve adjustment done.

    it needed it so bad it was cutting out at top speeds. the carburetor was not the cause.

    valve adjustment is very important but is/was overlooked by many. me included.

    this makes it very clear on how to do it. good werk. thank you again.

    o and ya it is quite "purdy"!!!
    Reply With Quote


  3. #3
    C-Moto Guru Brice's Avatar
    Join Date
    Apr 2008
    Location
    Xi'an, China
    Posts
    286
    Nice piece of work Lorne.

    I have a 4 cylinders to check for you...
    Reply With Quote


  4. #4
    C-Moto Regular volksjagger's Avatar
    Join Date
    Jun 2008
    Posts
    63
    well i wanted to update on my comment "it needed it so bad (valve adjustment) it was cutting out at top speeds. the carburetor was not the cause."

    it turns out i had a vacuum problem in the gas tank!!!

    although the bike did like the valve adjustment the stuttering gradually came back.

    after 2 trips to the dealer and about 5 test rides the second time it just needed a vacuum line swapped.

    i went down on my jetting since i went so big on it, all the way to 135. and it amplified the problem. that is when they dug a little deeper and determined it was the vacuum line.

    just wanted to clear this comment up. now it is running like a top again!!!
    Reply With Quote


  5. #5 valve adj
    C-Moto Noob
    Join Date
    May 2008
    Posts
    2
    Dont forget to rotate engine to set exhaust !!
    Reply With Quote


  6. #6
    Administrator-tron CrazyCarl's Avatar
    Join Date
    Apr 2008
    Location
    NoVA
    Posts
    2,538
    XS,

    Why would the engine need to be rotated to set the exhaust valve clearances?

    CC
    ---------------------------------------------------
    Subscribe to the hippest, most happeneing Adventure Motorcycle Magazine around!
    Adventure Motorcycle Dual Sport News Magazine

    Help support MCM!! Buy "The Return - Riding Western China" DVD! -

    http://www.motocyclops.com/buydvd/

    Personal China travel info, photo and video site:

    http://www.carlparker.com

    Reply With Quote


  7. #7 TDC at compression stroke
    Honorary C-Moto Guru
    Join Date
    Jun 2008
    Location
    Gijon, Asturias, Northern Spain
    Posts
    580
    I think XS means that the instructions tell you to place the engine at TDC. It doesn't specify "on the compression stroke". If you set TDC using the scribed marks on the exhaust stroke you can adjust the inlet valve but you'll have to rotate the engine 360 to do the exhaust valve.

    If you do find TDC on the compression stroke you can adjust both valves without any further movement of the crank.

    I find the following method works:

    Rotate engine in the normal running direction until you observe the inlet valve rocker move down. This means it's opening the inlet valve. Continue rotating until the rocker starts to come back up, meaning that the inlet valve is beginning to close and therefore you're nearing the compression stroke. Take your eyes off the rocker and concentrate on the flywheel marks. The next time the "T" mark comes up and aligns with the index you're on the compression stroke and both valves can be adjusted.
    Jincheng Monkey JC50Q-7
    Skyteam Dax replica ST110-6
    Zongshen ZS125-43
    Qingqi QM200GY-BA Super Motard
    Qingqi QM110GY
    Reply With Quote


  8. #8 Re: TDC at compression stroke
    C-Moto Not-so-Noob
    Join Date
    Apr 2010
    Location
    U.S.
    Posts
    20
    This is great I just got on the computer with the intention of posting on this topic. Thanks for the info. While I understand the theeory.....I've never tackled this job before. My scooter just past 300km and I was wondering how much time I have before I needed to do this. Does anyone know a link I could access on the QMB 139 engine schematic?

    Thanks so much.
    DI
    Reply With Quote


  9. #9 Re: TDC at compression stroke
    Senior C-Moto Guru humanbeing's Avatar
    Join Date
    Dec 2008
    Posts
    1,474
    Quote Originally Posted by dianageorgina View Post
    scooter just past 300km and I was wondering how much time I have before I needed to do this. Does anyone know a link I could access on the QMB 139 engine ...
    Search Honda GY6 50cc service manual in google
    Reply With Quote


  10. #10 Re: TDC at compression stroke
    C-Moto Not-so-Noob
    Join Date
    Apr 2010
    Location
    U.S.
    Posts
    20
    Thanks humanbeing.
    di
    Reply With Quote
